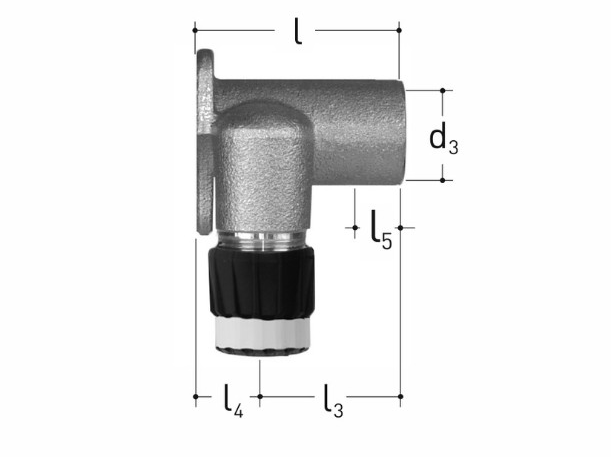

| GF Code | d-d(mm) | GN(inch) | SP | Weight(kg) | d1(mm) | d3 Rp(inch) | d4(mm) | d5(mm) | l(mm) | l1(mm) | l2(mm) | l3(mm) | l4(mm) | l5(mm) | l6(mm) | z1(mm) | 詢價 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 351 616 945 | 16-16 | 1∕2 | 5 | 0.27 | 16 | 16 | 1∕2 | 7 | 28 | 34 | 50 | 52 | 52 | 35 | 17 | 25 | |
| 351 620 949 | 20-16 | 1∕2 | 5 | 0.325 | 16 | 20 | 1∕2 | 7 | 28 | 34 | 50 | 55 | 62 | 62 | 17 | 25 | |
| 351 620 948 | 20-20 | 1∕2 | 5 | 0.29 | 20 | 20 | 1∕2 | 7 | 28 | 34 | 50 | 62 | 62 | 37 | 17 | 25 | |
| 351 616 946 | 16-16 | 1∕2 | 5 | 0.31 | 16 | 16 | 1∕2 | 7 | 28 | 34 | 80 | 52 | 52 | 63 | 17 | 43 | |
| 351 626 931 | 26-26 | 1∕2 | 2 | 0.44 | 26 | 26 | 1∕2 | 7 | 28 | 34 | 50 | 70 | 70 | 32 | 22 | 25 |
